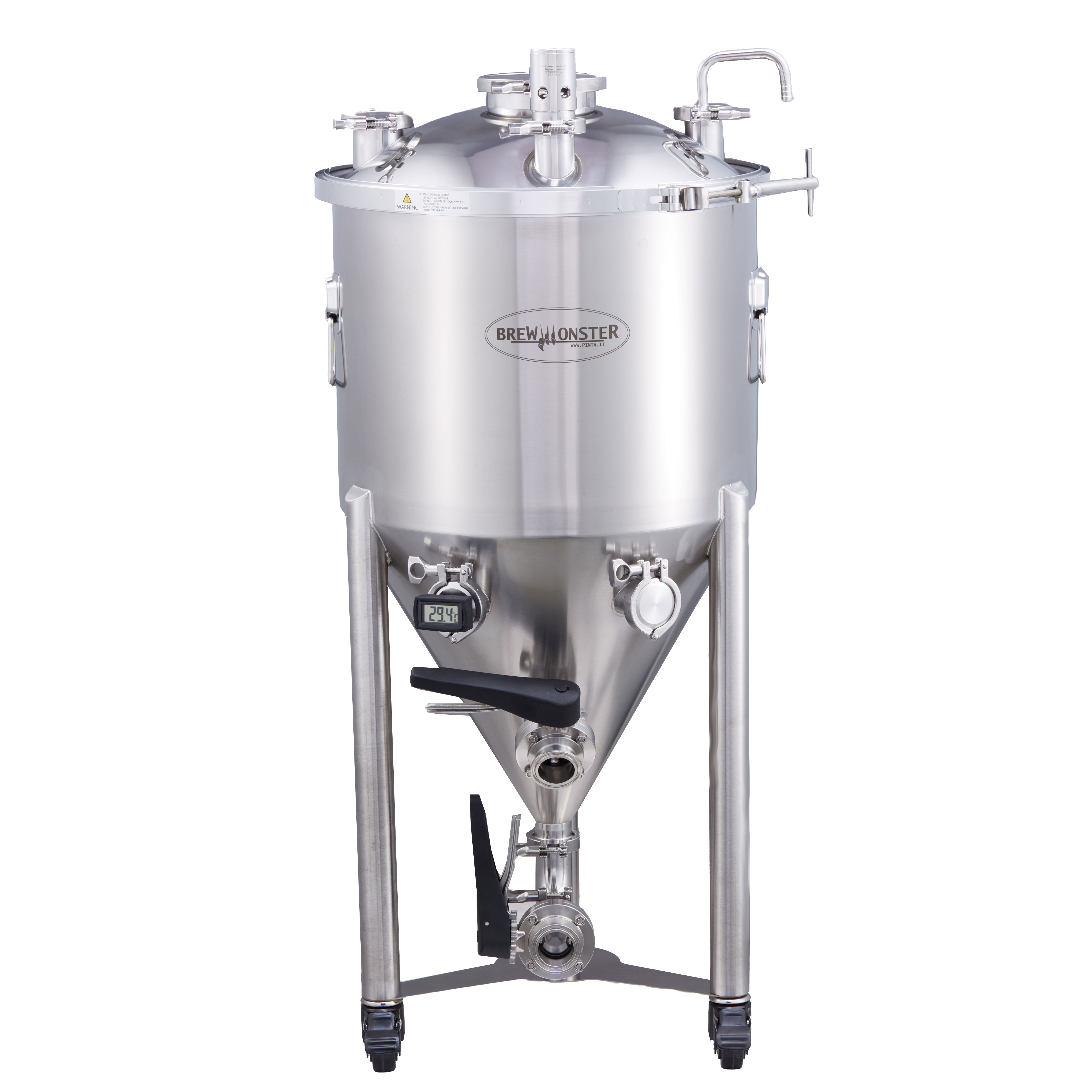

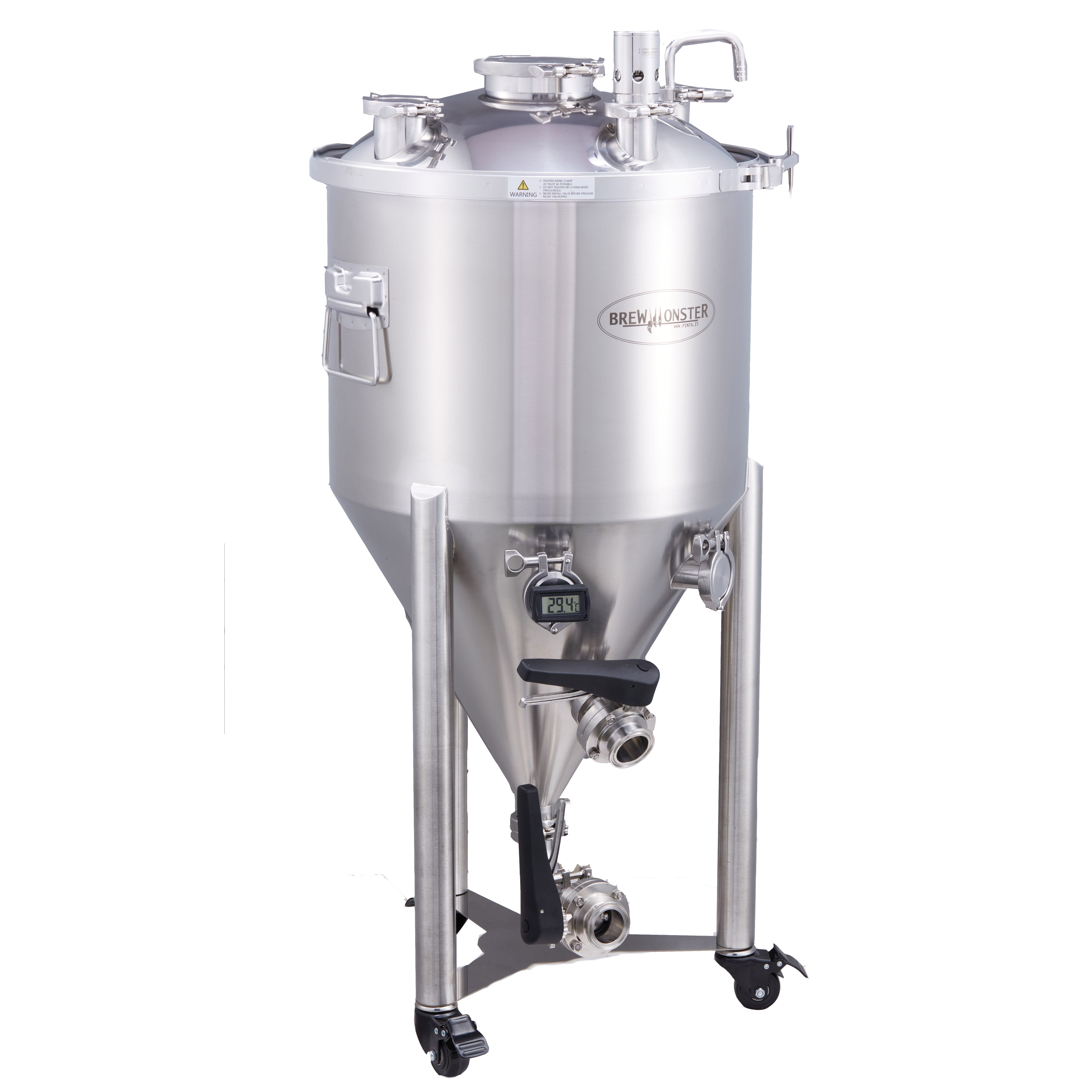

The Brewmonster 50L Isobaric Fermenter is designed for demanding brewers seeking precise and advanced control during fermentation. Its 60° conical design facilitates the removal of sediment during fermentation, ensuring clear, high-quality beer. Thanks to its ability to operate under pressure, it is ideal for controlled fermentations, such as highly carbonated beers or dry-hopping processes.
Download the technical data sheet
Key Features:
✅ Fermentation under pressure up to 1 Bar (15 PSI) — ideal for controlled fermentation of beer.
-
Operating pressure: 1 bar (≈ 15 PSI) – recommended for continuous use.
-
Maximum pressure: 2 bar (≈ 30 PSI) – safety limit, not to be exceeded under normal conditions.
✅ 60° conical shape promotes natural sedimentation of solids, improving the clarity of the final product.

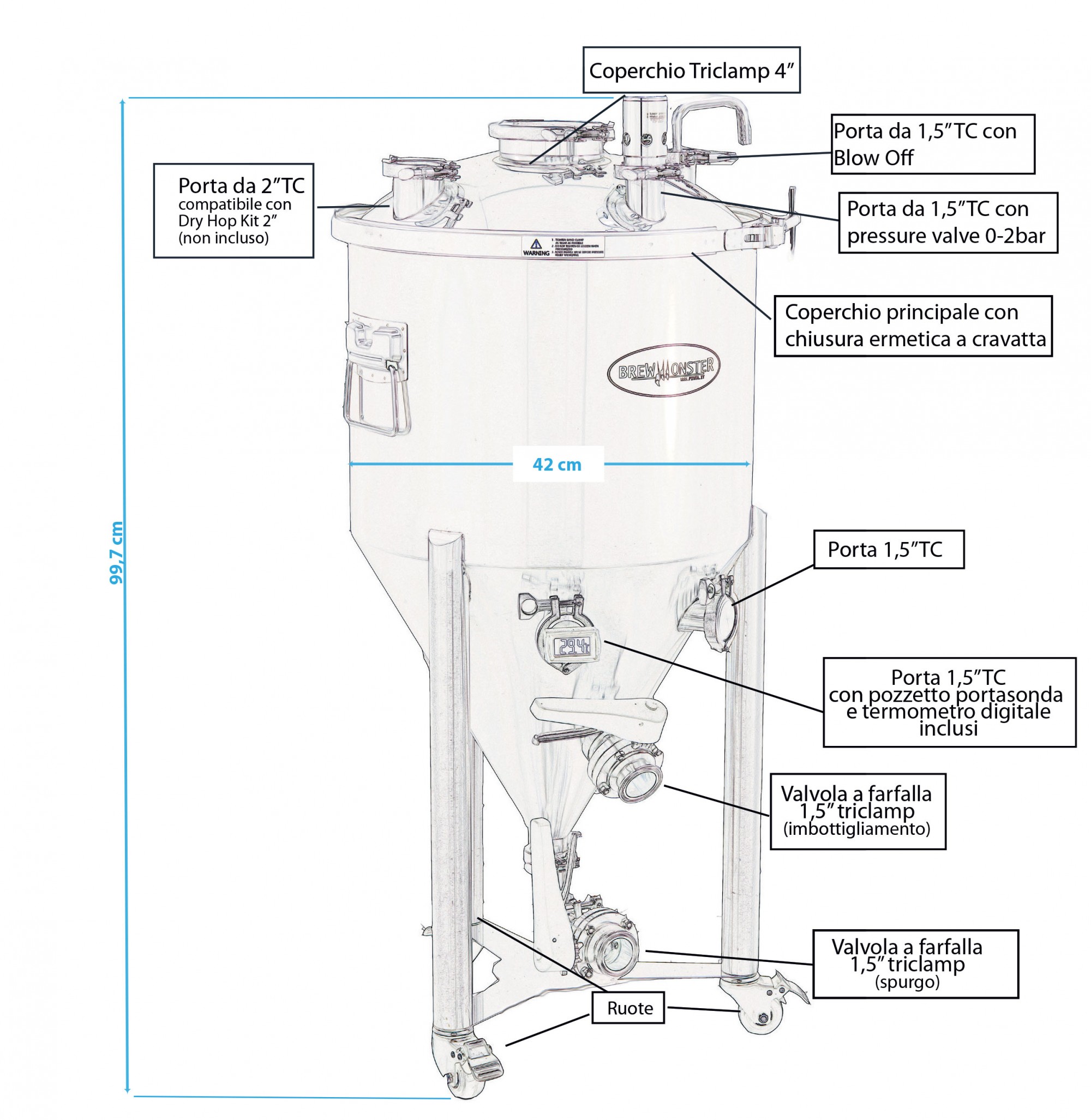

✅ Three 1.5" Tri-Clamp ports on the cone for easy connection to accessories such as thermometers, pressure gauges, carbonation stones, and sampling valves.
✅ Tri-Clamp lid with a 4" port for dry-hopping and hop additions, plus two 1.5" ports and one 2" port for PRV, blow-off, airlock, or other applications.
✅ Integrated wheels for easy movement within the brewery or fermentation room.
✅ Made from SS304 stainless steel, known for its corrosion resistance and durability.
✅ Capacity: 50–55L (maximum volume 58 liters)
✅ Wall thickness: 1.2 mm (body and lid), ensuring sturdiness and insulation.
✅ Neoprene insulation jacket included
✅ Height without accessories: 90.8 cm, height with wheels: 99.7 cm, tank diameter: 42 cm (max width 45 cm)
✅ Cone volume: 18 liters
✅ Minimum recommended volume: 25 liters
✅ Operating pressure: 1 bar, maximum: 2 bar
✅ Material: AISI 304 stainless steel
The Brewmonster 50L is a high-quality fermenter, perfect for producing clear beer and for precisely managing every stage of the fermentation process.
