ISOBARIC FERMENTER JACKET BREWMONSTER 30 LT.

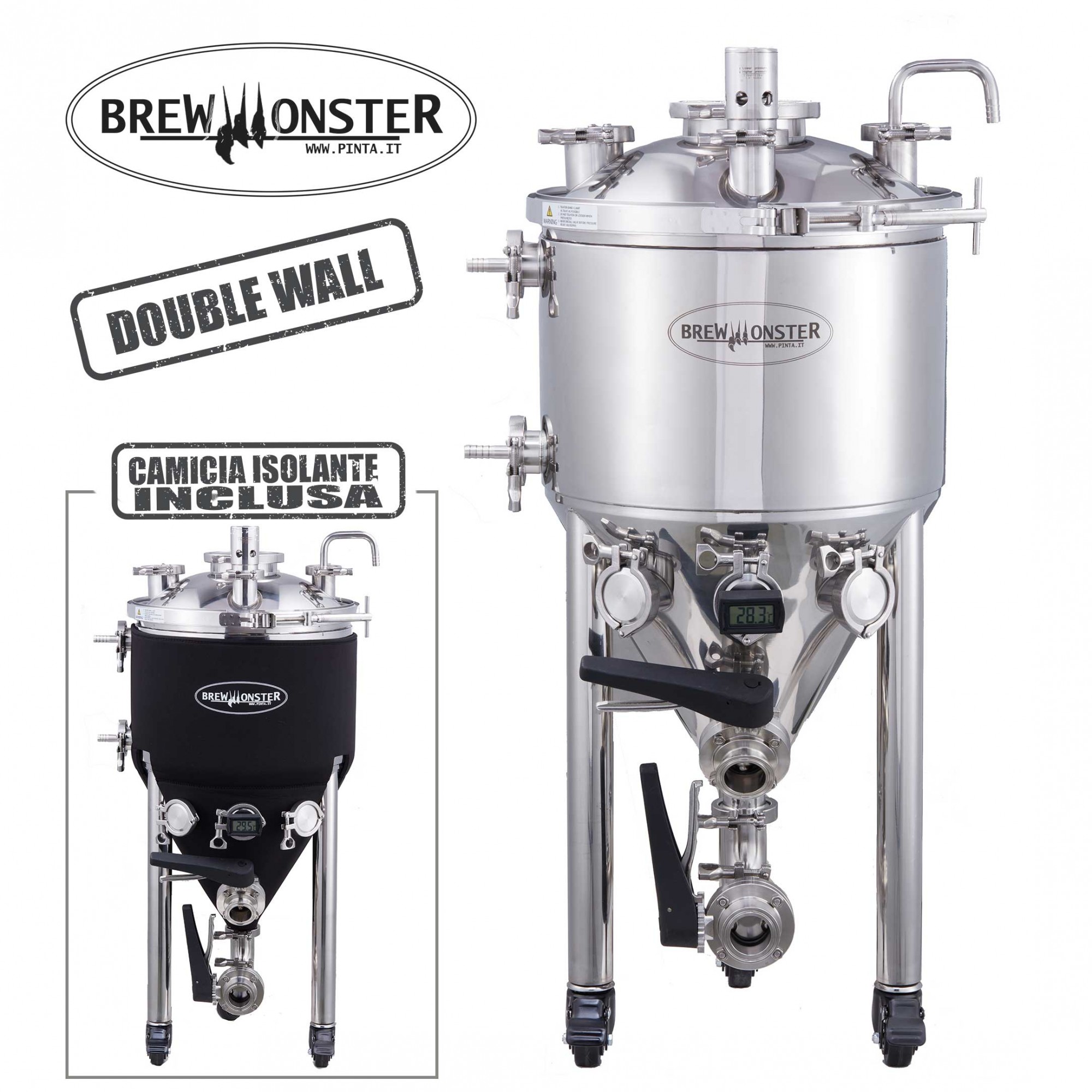

Introducing the Brewmonster conical jacket fermenter.
Featuring an advanced double-walled cooling jacket, this isobaric fermenter is designed to revolutionize your brewing experience.
- 1.5" Adjustable Pressure Vacuum Valve
- Sampling Valve Tap

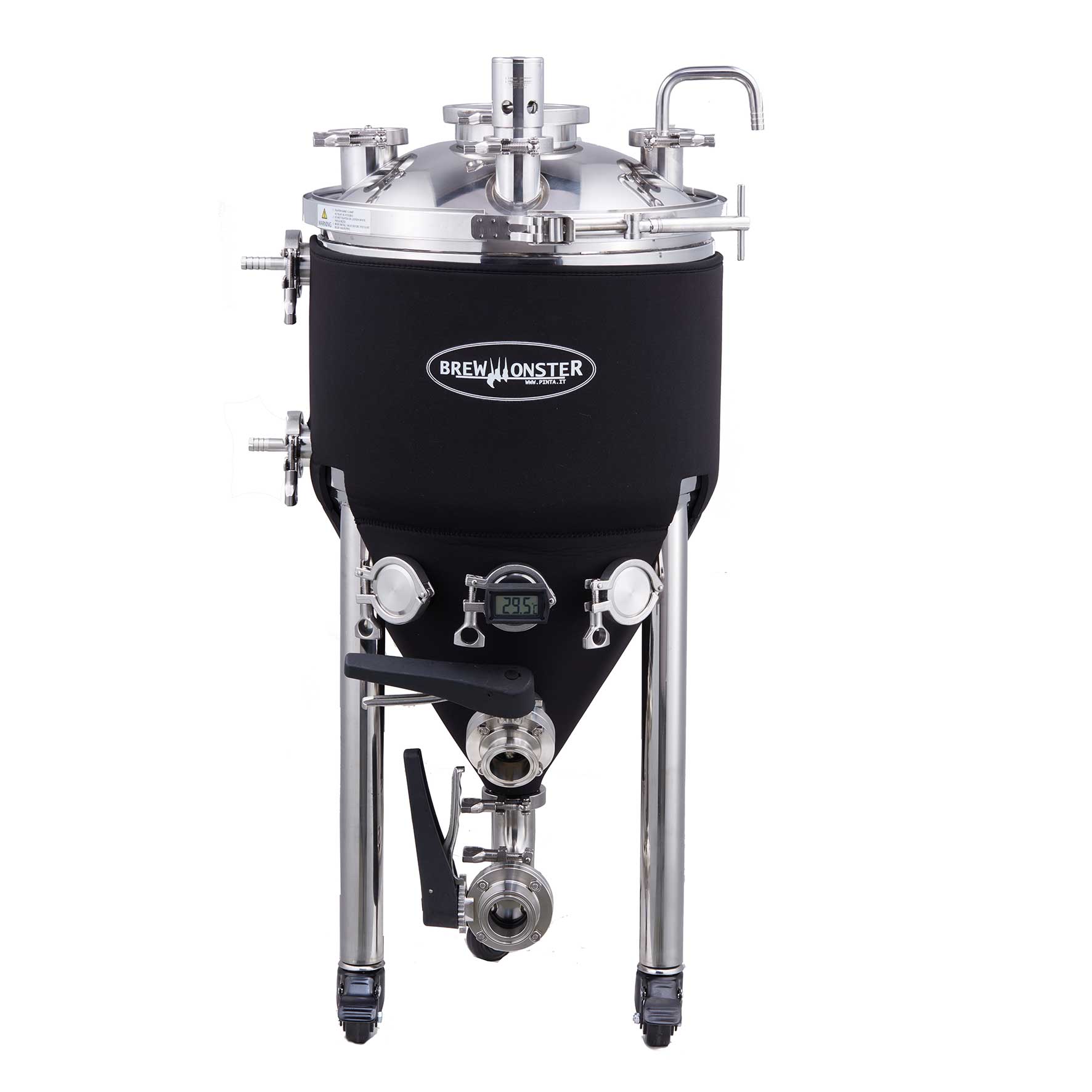

- Stylish Insulation Jacket to Keep Things Cool and Cozy
Conical Jacketed Fermenter + with up to 15 PSI (1 bar) operating pressure
Insulation Jacket

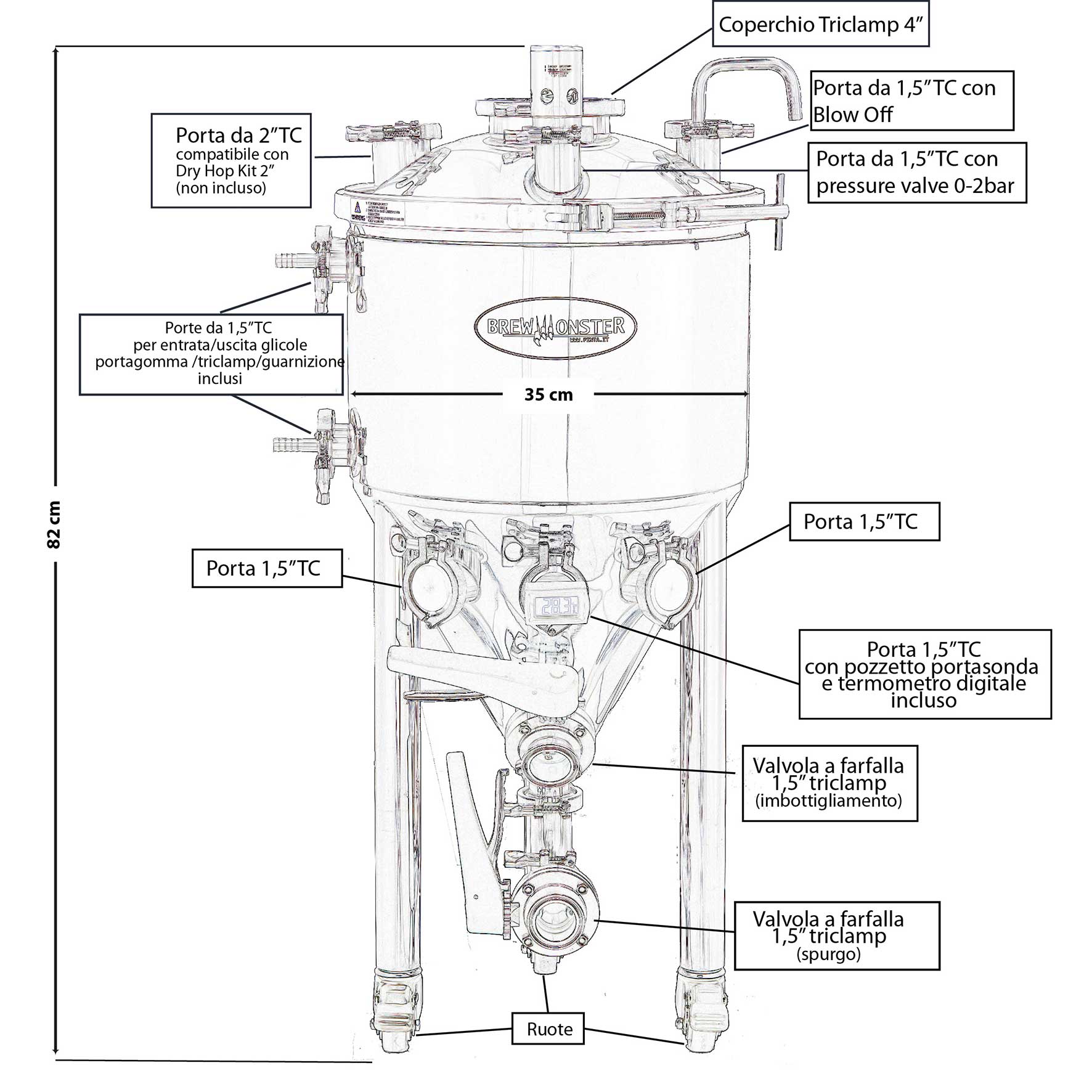

Dome Lid with 4" TC Port, 2" TC Port, and 2 x 1.5" TC Ports
Seal with Sealing Clamp with Lid Gasket
1 x 4" Clamp + 4" Gasket + 4" TC Cap
1.5" Clamps + 1.5" TC Gasket + 4 x 1.5" TC Caps
2 x 1.5" Butterfly Valves + 1 x 1.5" TC Elbow
1.5" TC Thermowell
1.5" TC Vent barb
3 wheels

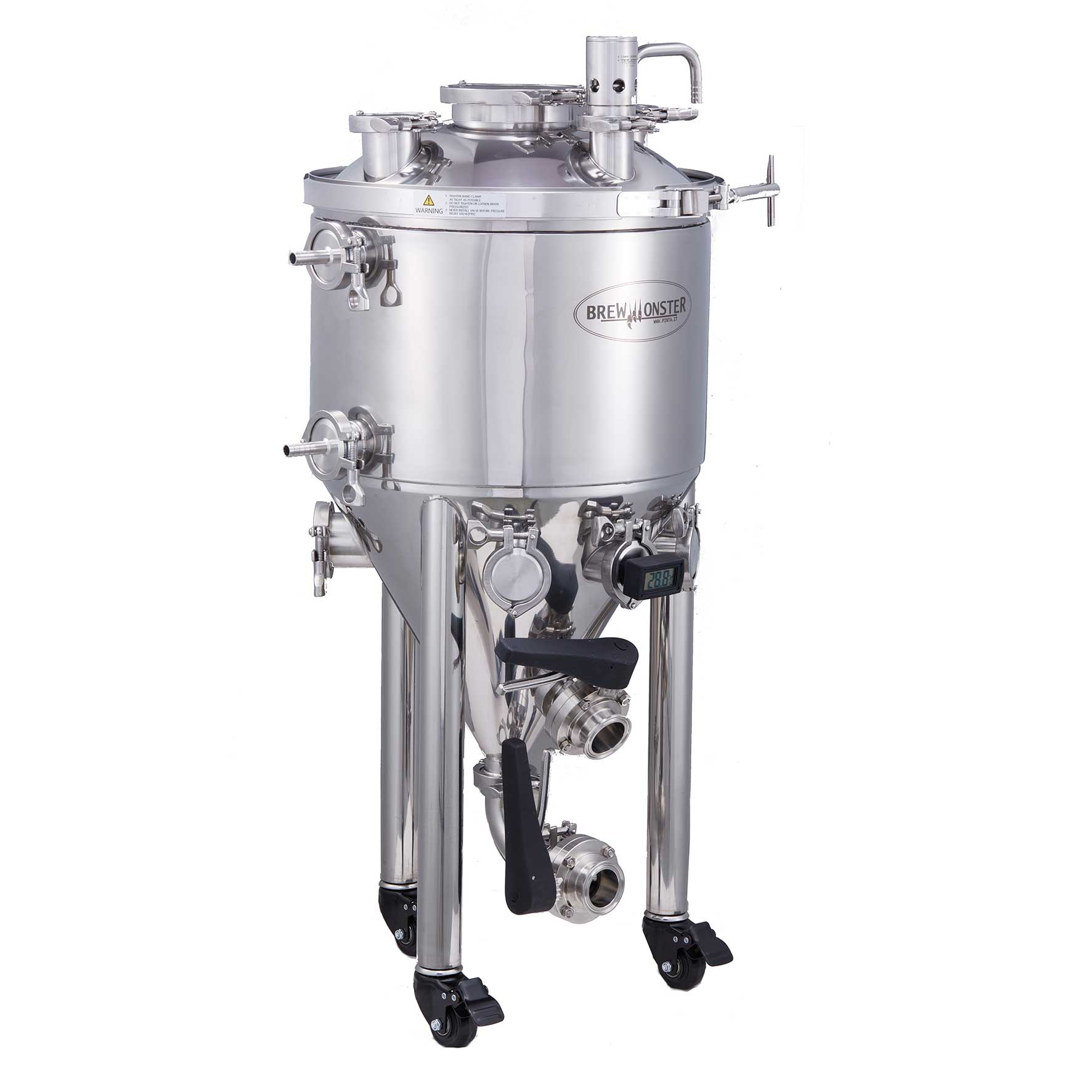

The Brewmonster Isobaric Conical Fermenter offers brewers the ultimate 304 stainless steel fermenter.
With its 60 degree conical design it is suitable for purging trub or hops used in dry hopping.
The conical fermenter is a fully tri-clamp design. Featuring three 1.5" tri-clamp ports on the cone, it allows for seamless integration with your current brewing equipment.
These versatile ports provide easy access for connecting accessories such as thermometers, carb stones, pressure gauges or sampling valves, allowing you to monitor and fine-tune your beer with precision.
The lid also features a 2" tri-clamp port and two 1.5" tri-clamps that can be used for PRVs, airlocks, blow-off barbs or as a hop port to quickly add hops or attach a hop drop kit and dry hop without access to oxygen.
The conical fermenter rests on three fixed legs, which can be mounted on castors that are part of the conical fermenter. This allows the conical fermenter to be moved variably within the space if necessary.
Maximum height without accessories 75.7 cm
Maximum height with spike and castors 83.2 cm
Capacity 30 - 32 L (full top)
Minimum recommended volume 15 L
Cone volume 10.5 L
Body thickness 1.2 mm
Cover thickness 0.8 mm
Lid thickness 1.2 mm
Material SS304
